Intelligent
Recirculating Chillers
Recirculating Chillers
General overview Technical Information
Content
- Functionality of the recirculating chiller ProfiCool Minimus
- Functionality of the recirculating chiller ProfiCool Primus
- Functionality of the Water-to-Water heat exchanger FlowCool Unicus
- Functionality of the Air-to-Water heat exchanger AirCool Ventus
Functionality of the recirculating chiller ProfiCool Minimus
The benefits at a glance:
- Single-circuit system including tank open to atmosphere
- Maintenance-free air-cooled refrigeration machine
- Construction using evaporator coils provides effective protection against freezing
- Extremely quiet
Schematic Diagram
Functionality of the recirculating chiller ProfiCool Primus
The benefits at a glance:
- Single-circuit system including tank open to atmosphere
- Air-cooled cooling machine
- Coil evaporator made of stainless steel
Schematic Diagram
Functionality of the Water-to-Water heat exchanger FlowCool Unicus
For many cooling applications (e.g. lasers, electron microscopes or X-ray generators, and countless more) the company's in-house, central cooling water is too cold and/or of insufficient quality. The FlowCool Unicus provides the solution. It employs a water-to-water heat exchanger system, i.e. a cooling system without an active refrigerating unit. The application is cooled with its own water circuit (= application cooling circuit) while the dissipated process heat is transferred to the central cooling water supply (= in-house cooling circuit).
The benefits at a glance:
- Correct and constant water temperature.
- Constant water quality without dirt, lime, algae or rust.
- Correct and constant water pressure.
- Extremely quiet, hence suitable for use directly at the workplace.
- Reliable even at elevated ambient temperatures.
- No additional heat load at installation site.
- Extremely low energy consumption compared with circulating chillers.
- Available with and without housing.
Schematic Diagram
Functionality of the Air-to-Water heat exchanger AirCool Ventus

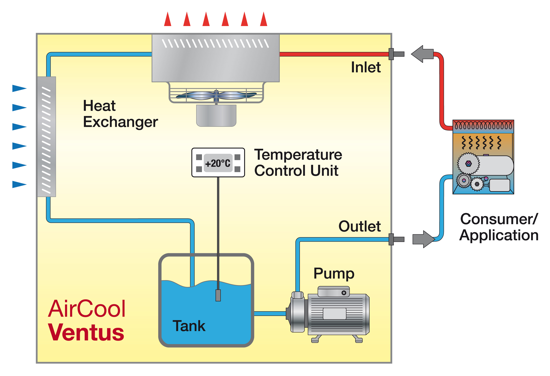

Schematic Diagram
